Examples

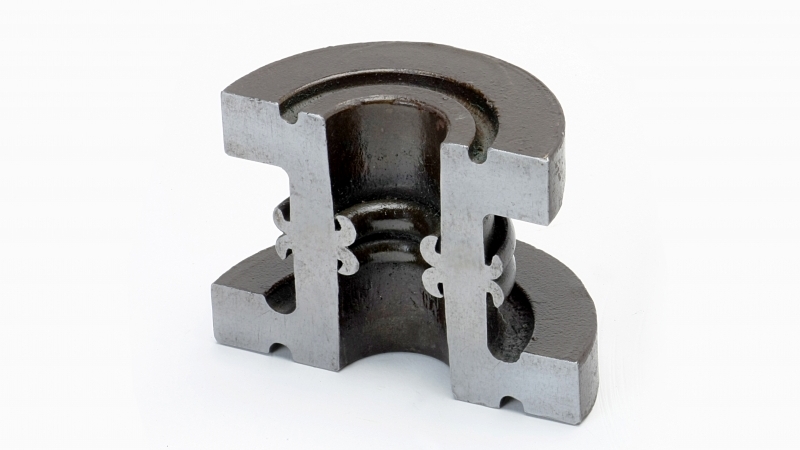

Counter gears

Category: Friction welding machines
Application, field: Automobiles / vehicle parts

Engine parts
Material: Carbon steel

S43C×S43C
Bonding dimensions: φ77×t15
Conventional technique: Integrated forging
Purpose: Reduced cost

Issues to be resolved

Cutting from integrated forging
- Extensive machining necessary

Adoption merits

- Reduced forging cost by machining workpieces separately
- Improved forging outer diameter (perfect circle) accuracy by machining workpieces separately
- Machining costs reduced by improving outer diameter accuracy

Applicable Model

2FW045

Sprockets

SS400×SPC1×STK45

Power bits

SKH9×S45C

Differential transformers

PB x SUS304 ferromagnetic material

Overhead wire fittings

A1100×C1020

Click here for list of examples

Friction welding materials

Stable, complete joints are realized, even when combining dissimilar metals or nonferrous metals.
