Examples

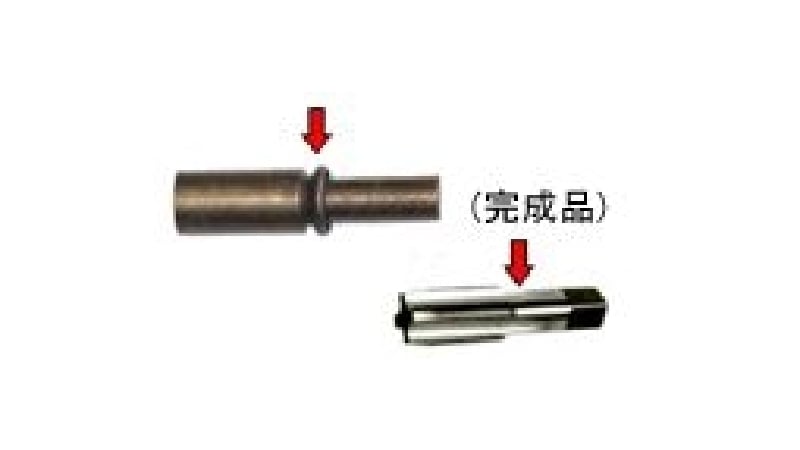

Crank shafts

Category: Friction welding machines
Application, field: Machine parts

Air conditioner related parts
Material: Carbon steel

S15C×S15C×STKM13C
Bonding dimensions: φ25-φ42×t9
Conventional technique: Integrated forging
Purpose: Reduced cost

Reduced weight

Issues to be resolved

Cutting from integrated forged parts
- Many forging dies necessary
- High machining workload

Adoption merits

- Weight press machining by machining workpieces separately (adoption of mass production possible for weights)
- Reduced machining workload
- Pipes used for weight reduction

Applicable Model

2FW030

Push rods

SCM421×STKM55×SCM421

Crank shafts

S48C×S48C

Torque rods

S43C×S43C

Differential transformers

PB x SUS304 ferromagnetic material

Click here for list of examples

Friction welding materials

Stable, complete joints are realized, even when combining dissimilar metals or nonferrous metals.
