Friction welding machine product introduction

2FW030 series

Horizontal single-head machine, horizontal double-head machine, vertical machine

This diverse high-efficiency machine is widely adopted in many industries other than just the automobile industry.

2FW030HS horizontal single-head machine

This is a standard size, even among friction welding machines. Spindle feed can be numerically controlled with the use of an NC.

Typical model: 2FW030HS

Typical model: 2FW030HS

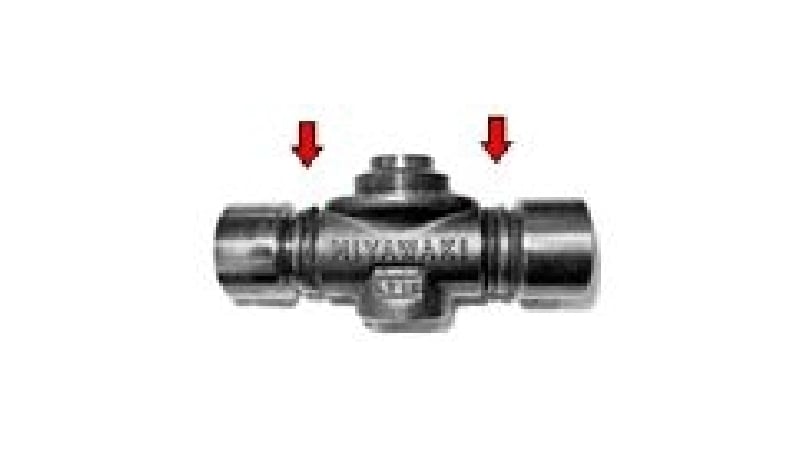

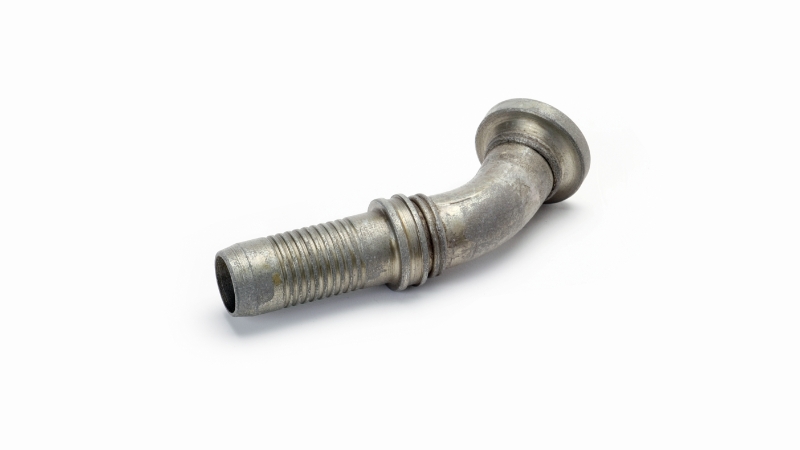

Typical product: hydraulic pipe joints

Typical product: hydraulic pipe joints

Recruitment fields

Automobiles / vehicle parts Cutting / tool parts Machine parts Hydraulic / air pressure parts Electrical parts Construction machinery / agricultural machinery / production machinery parts Construction / civil engineering parts

Option examples

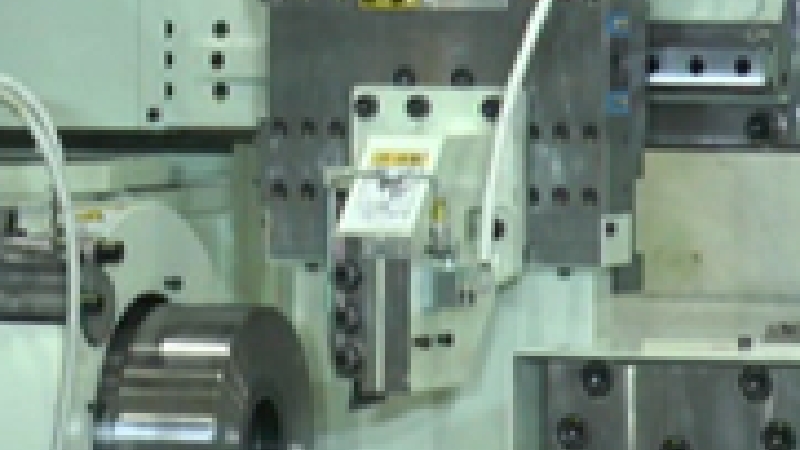

Cutting device
Cutting device

Removes burrs produced during pressure welding.

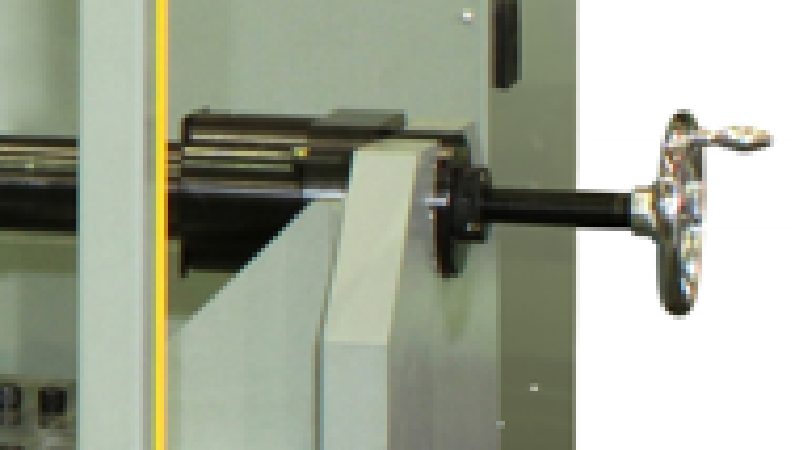

Thrust receiving stop device
Thrust receiving stop device

The thrust bearing length can be changed with a handle.

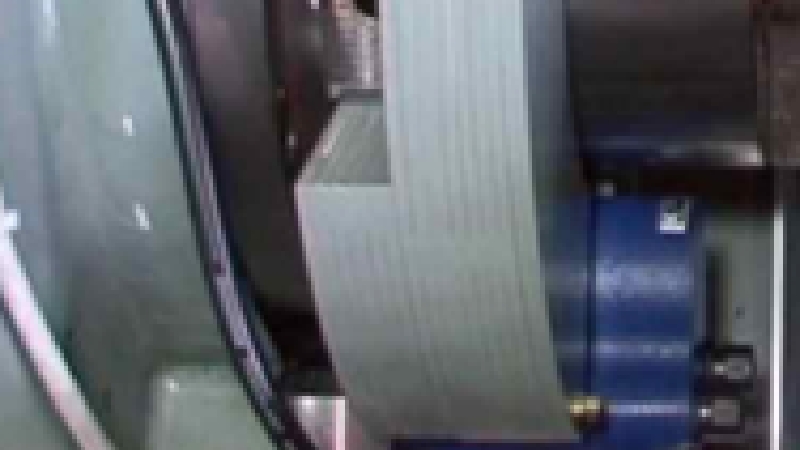

Disk brake
Disk brake

Stops spindle rotation suddenly.

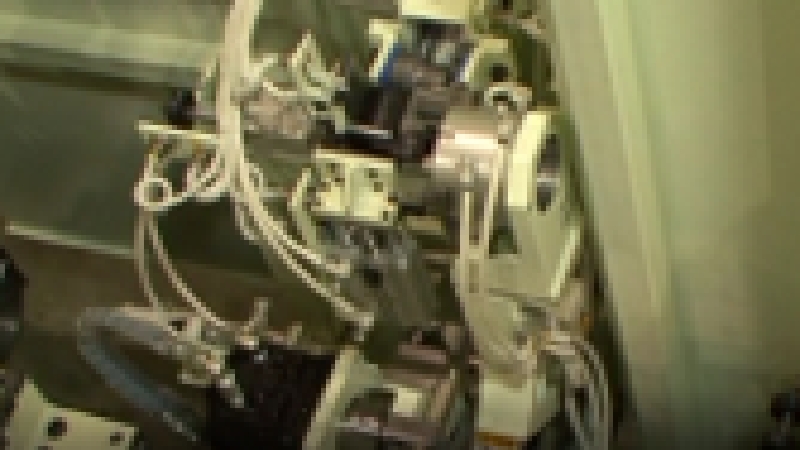

Workpiece loading device
Workpiece loading device

Blanks are automatically supplied to the spindle unit.

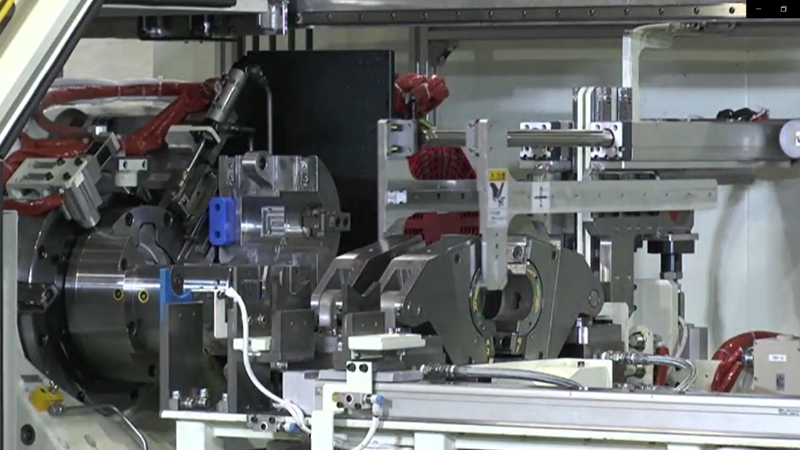

2FW030HS-XTC horizontal double-head machine

This friction welding machine is equipped a spindle at both sides, and is capable of simultaneous bonding at both sides with high phase accuracy.

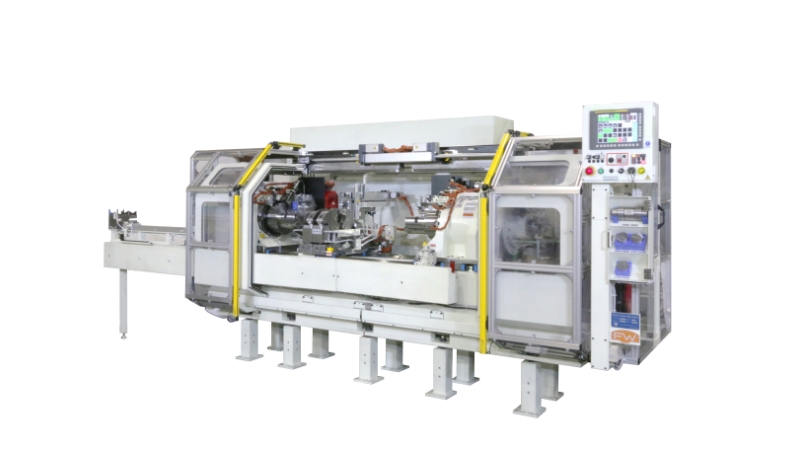

Typical model: 2FW030HS-XTC

Typical model: 2FW030HS-XTC

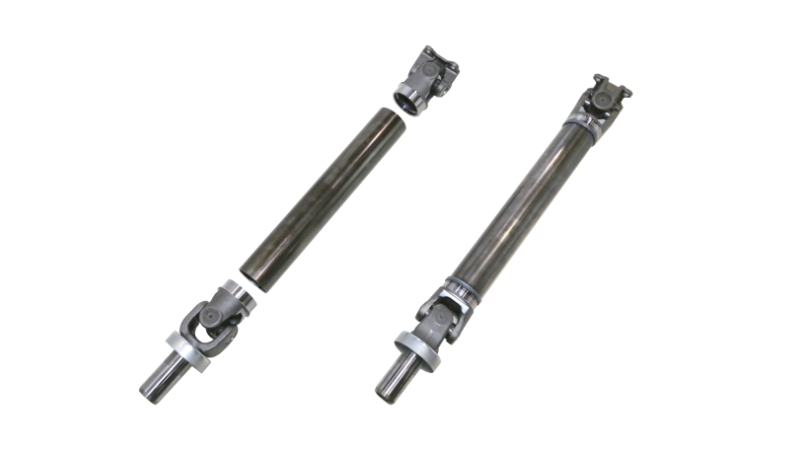

Typical product: propeller shafts

Typical product: propeller shafts

Recruitment fields

Automobiles / vehicle parts

Option examples

Delivery device
Delivery device

Finished parts are removed from a clamp device.

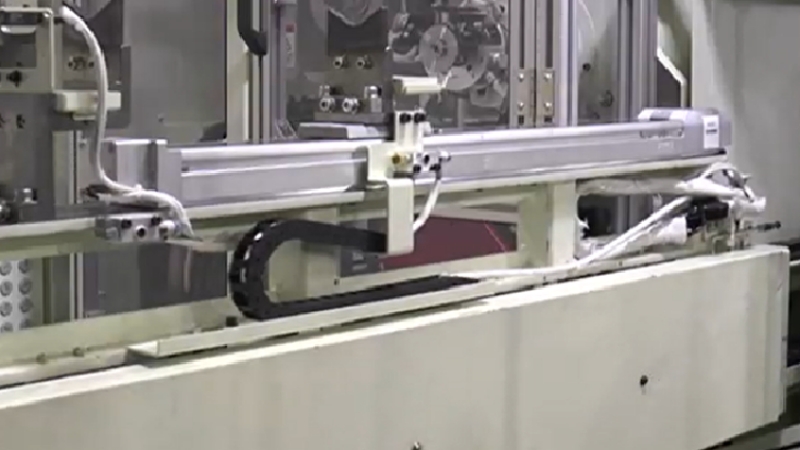

Delivery shifter
Delivery shifter

This is a mechanism used to slide finished parts to the next process.

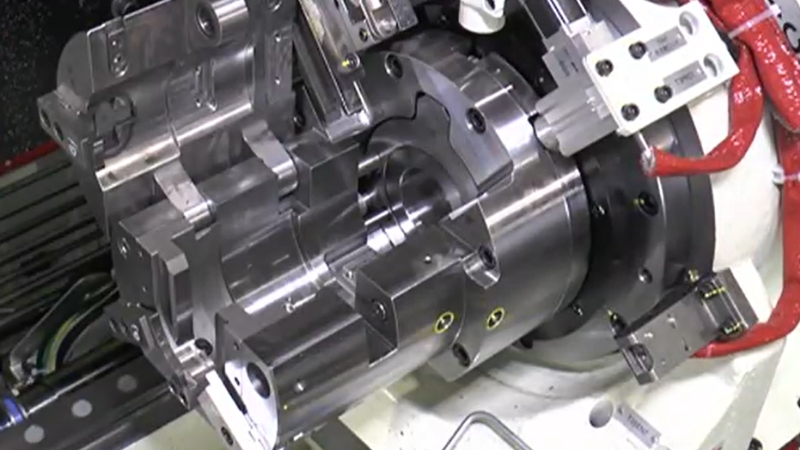

Assembly chuck
Assembly chuck

Assembled yoke can be set.

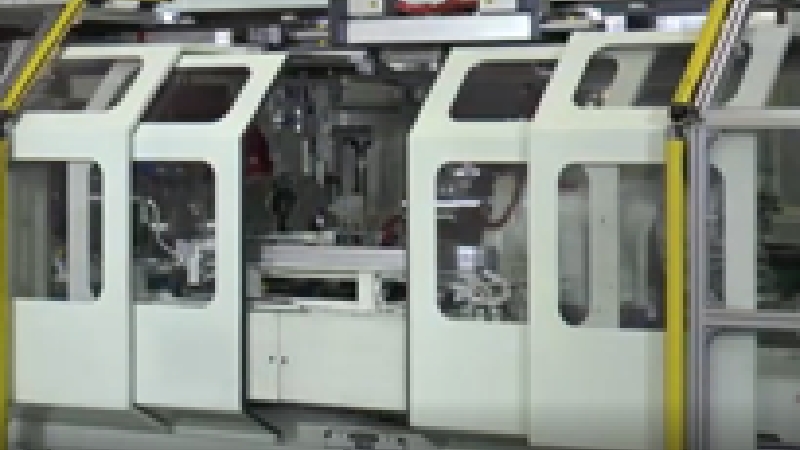

Automatic electric doors
Automatic electric doors

These are airless automatic doors.

2FW030VT vertical machine

With its compact installation area, this equipment is ideal for saving space.

Typical model: 2FW030VT

Typical model: 2FW030VT

Typical product: intermediate joints

Typical product: intermediate joints

Recruitment fields

Automobiles / vehicle parts Machine parts Electrical parts

Option examples

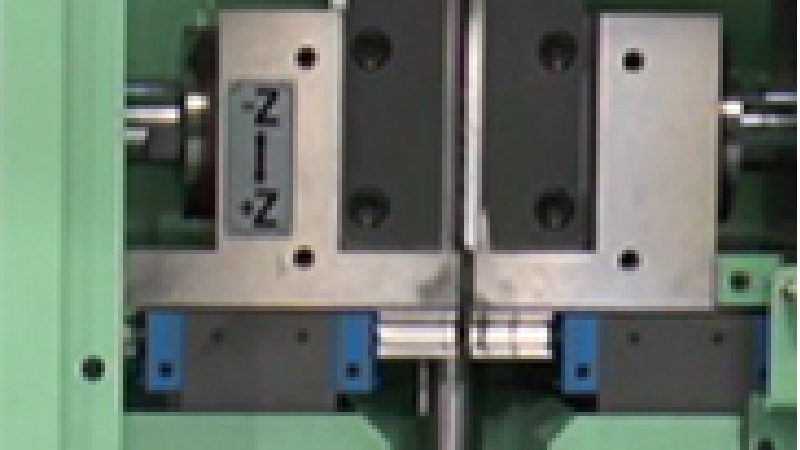

Parallel vice clamp
Parallel vice clamp

This parallel vice clamp was developed for vertical machines.

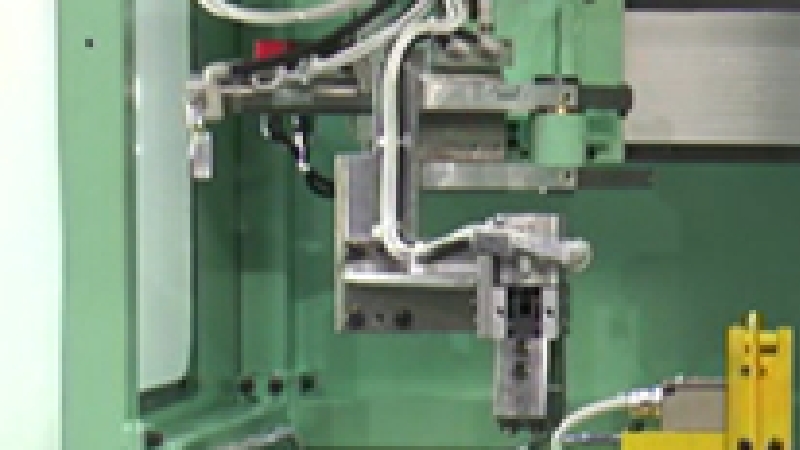

Delivery device
Delivery device

This device is used to automatically remove finished parts from the clamp.

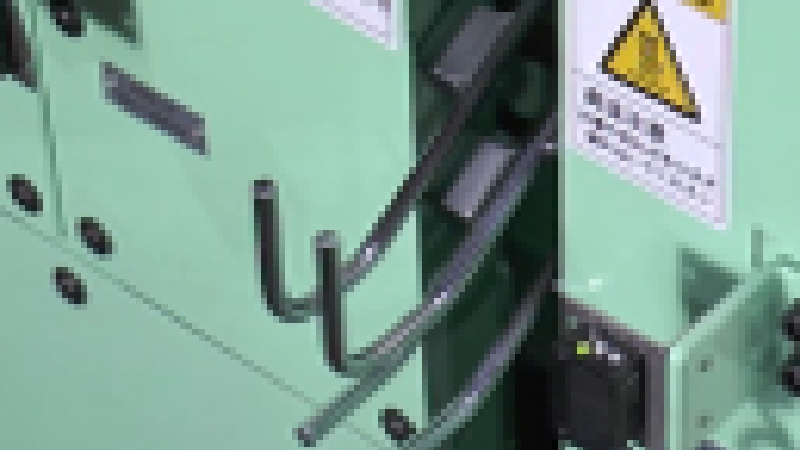

Finished part chute
Finished part chute

Carries finished parts outside the machine.

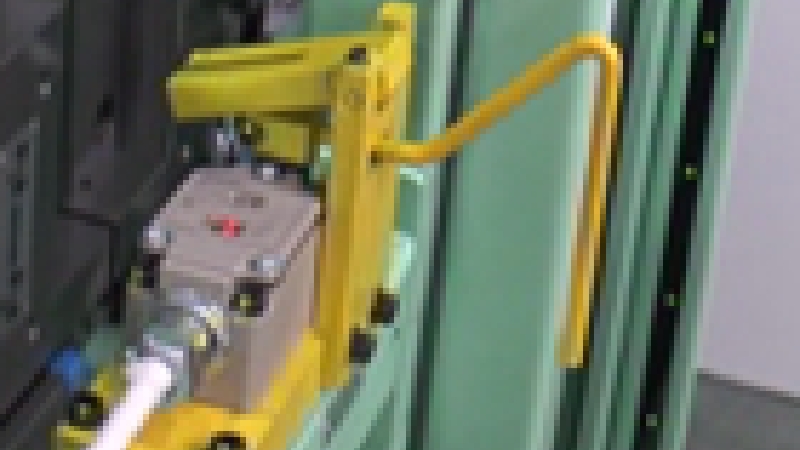

Start striker
Start striker

This switch is used by the operator to start the equipment after setting the product.

Examples of Other Fields / Merits

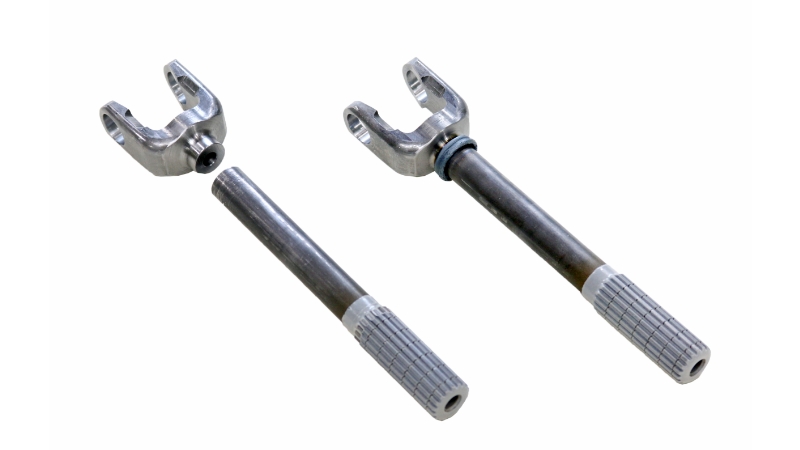

Propeller shafts
Propeller shafts

S35C×STKM13B×S35C

Ball joints
Ball joints

S35C×SUJ2

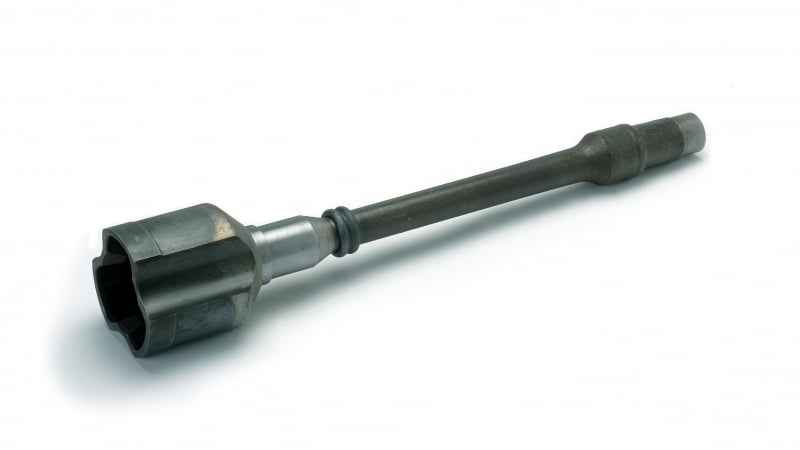

Turbo impeller shafts
Turbo impeller shafts

Inconel713C×SCM440H

Aluminum hubs
Aluminum hubs

A2017-T6×A2017-T6

Click here for list of examples
