Friction welding machines for Propeller shafts

２FW045HS-XTC（XT），FW030HS-XTC

This machine is widely adopted for key drive unit parts for automobiles.
This high-efficiency machine has been designed for double-head machine (with phase function) production efficiency.

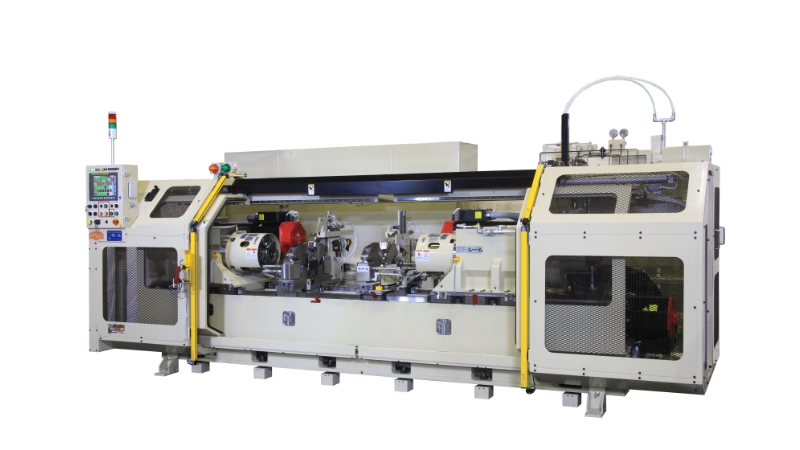

External photo of 2FW045HS-XTCI

External photo of 2FW045HS-XTCI

Representative parts

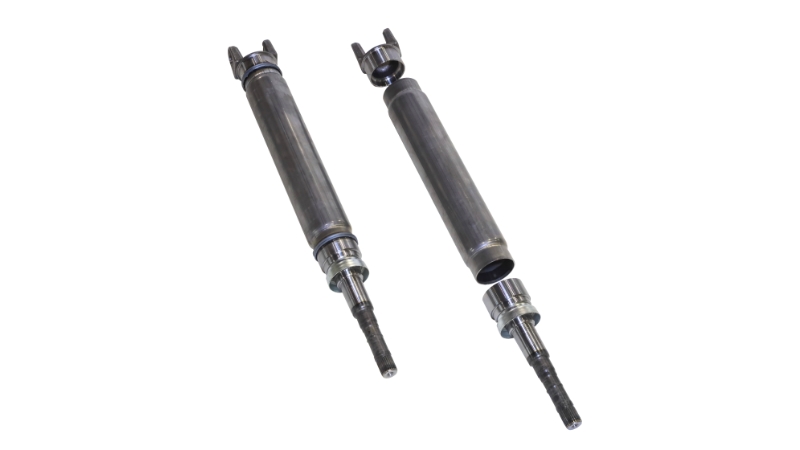

Propeller shafts

Propeller shafts

Rear axle housing, rear axle housing ends, torque rods, radius rods

Features

Excellent for the bonding of small to medium diameter, and short products.

Improved productivity

  • This product is easily operated with high reproducibility, and the same products can be produced continuously.

  • Unmanned operation and automation are possible with use of loading and unloading.

  • Simultaneous bonding is possible at both sides.

Improved quality

  • Thermal distortion is minimal, and stable dimensional accuracy is obtained.

  • The pressure welding status is monitored constantly, and “OK” or “NG” can be judged automatically.

  • Phase angle alignment is possible at both ends (phase accuracy: ±1°).

Cost reductions

  • Material weight can be reduced by 20%.

  • No spatter is produced, eliminating the need for residue clear-up work.

  • Power consumption is 1/5 to 1/20 of that of other welding methods.

Improved environment

  • CO2 emissions can be reduced.

  • No toxic substances such as sparks or gas are produced.

We customize products in line with your company’s requests

Examples of typical options that can be installed on 2FW030HS-XTC
[1] Delivery unit [2] Unloading shifter [3] Assembly chuck [4] Automatic electric door　
* This equipment cannot be equipped with a cutting device.

Option examples

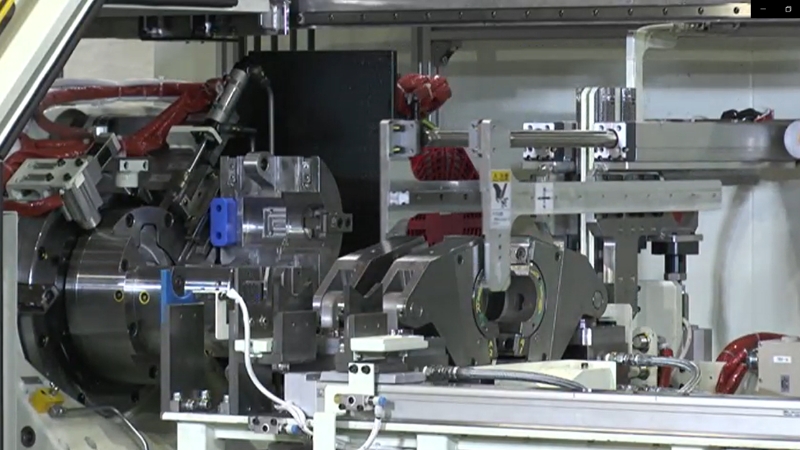

Delivery unit

[1] Delivery unit

Workpieces are automatically removed from the clamp unit.

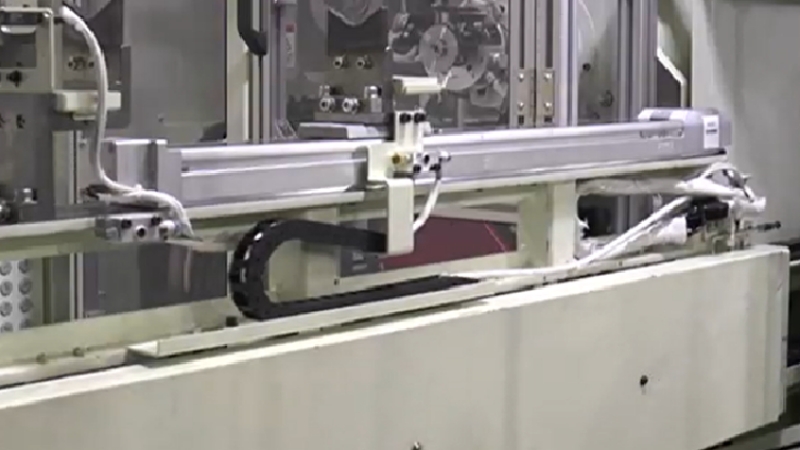

Unloading shifter

[2] Unloading shifter

This unit is used to moved and convey finished parts to the next process.

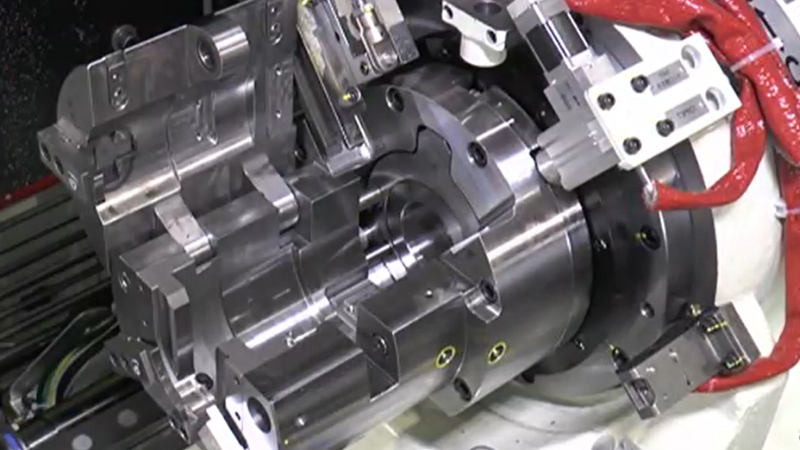

Assembly chuck

[3] Assembly chuck

Workpieces (yoke part) can be set in assembled condition.

Machine specifications

Machine specifications：2FW030HS-XTC/2FW045HS-XTC/2FW045HS-XTAC

Item
 Model 2FW030HS-XTC 2FW045HS-XTC 2FW045HS-XTAC
Maximum thrust At the time of generating frictional heat (kN) 30 40 70
At the time of applying upset pressure (kN) 50 60 120
Pressure welding capacity (pipe materials) (mm) φ65（t=1.6） φ75（t=2.3） φ105（t=3.0）
Phase angle Degrees 360° 360° 360°
Slide travel (mm) 400 400 500
Maximum length of materials to be mounted Rotating side (mm) φ65×250 φ75×250 φ105×250
Fixed side (mm) φ82.6×1,200 φ82.6×1,300 φ105.0×1,500
Spindle Rotating speed (rpm) 1,600 1,800 1,800
Motor output (kW) 52 60 125
Gross weight (guide) (ton) 6.0 7.0 9.0
Floor space occupancy (guide) (m) 3.9×1.9 4.2×2.3 5.5×2.4

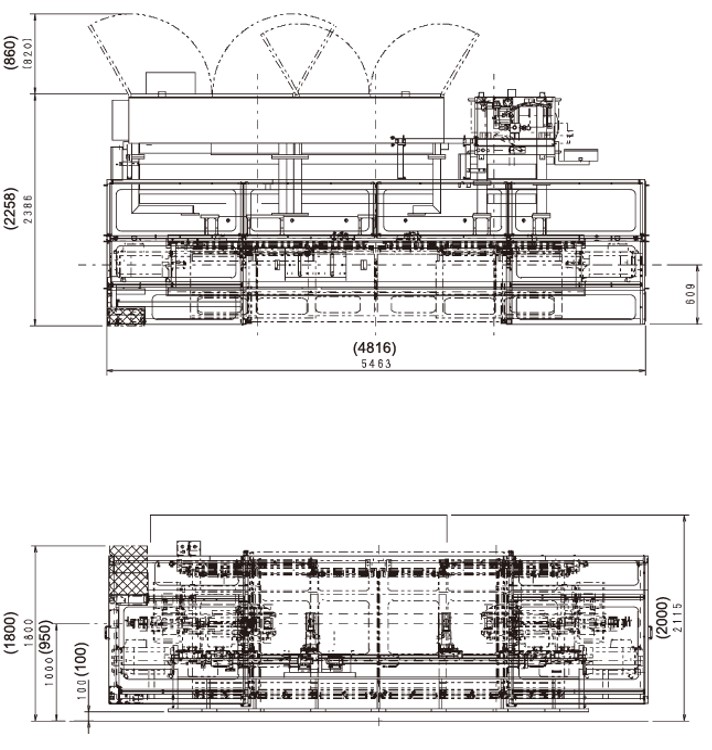

External dimension drawing

External dimension drawing
These diagrams show the 2FW045HS-XTAC.
Note) These specifications and dimensions may be subject to change without prior notice due to improvements, etc. or device specifications.

Examples of Other Fields / Merits

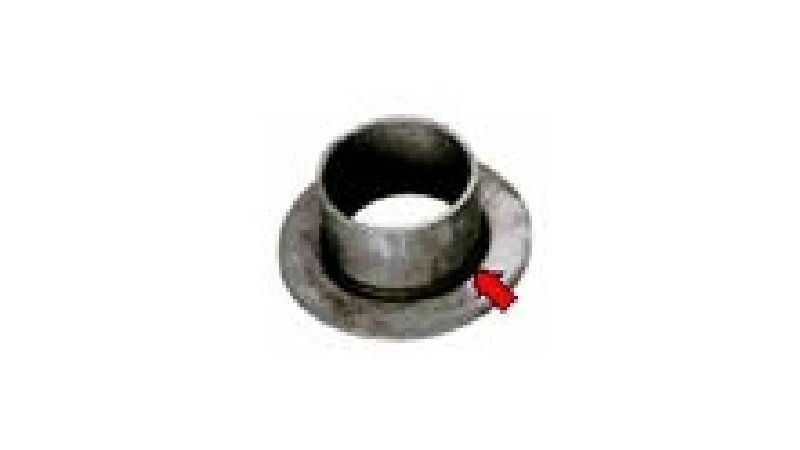

Sprockets
Sprockets

SS400×SPC1×STK45

read more

Drive shafts
Drive shafts

SCM422×SUS630×SUS630

read more

Axle shafts
Axle shafts

S45C×S45C×SCM435

read more

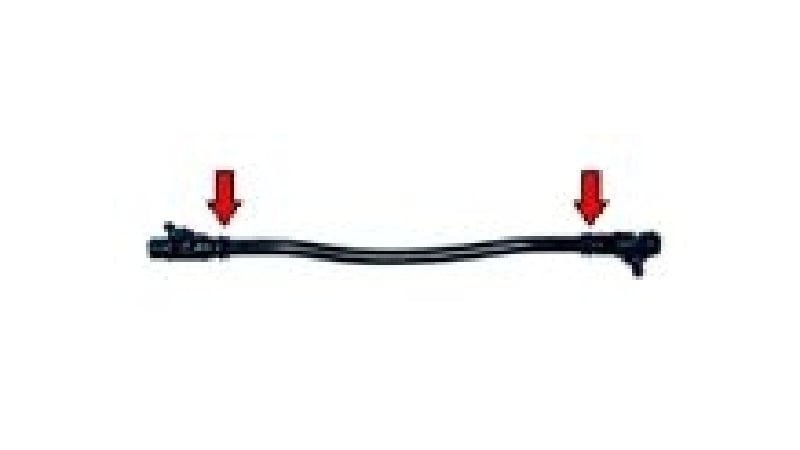

Steering rack shafts
