Examples

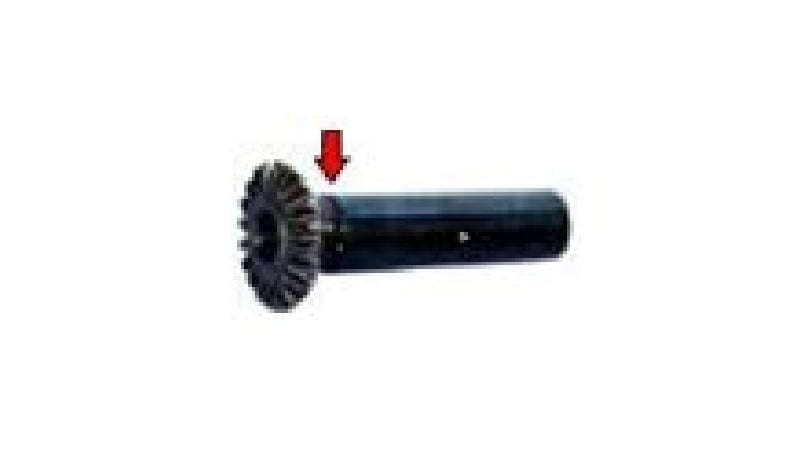

Tulip shafts

Tulip shafts
Tulip shafts
Category
Application, field

Drive parts

Material

SCr421×SCM435

Bonding dimensions

φ40×t3.2

Conventional technique
Purpose

Merits of Adopting Izumi Equipment

Conventional technology: forged part cutting

Issues to be resolved

Cutting from integrated forging
- Large joint part dimensions (large mounting space)

Adoption merits

- Optimization of material and heat treatment by machining workpieces separately
- Joint parts more compact by optimizing material

Applicable Model

2FW030
2FW030

read more

Examples of Other Fields / Merits

Aluminum stud bolts
Aluminum stud bolts

A1100×A6061 (plate x bolt)

read more

Differential transformers
Differential transformers

PB x SUS304 ferromagnetic material

read more

Aluminum hubs
Aluminum hubs

A2017-T6×A2017-T6

read more

Connectors
Connectors

C1100×C1100

read more

Click here for list of examples

Friction welding materials

Stable, complete joints are realized, even when combining dissimilar metals or nonferrous metals.

read more
